Metal Injection Molding (MIM) technology demonstrates significant advantages in the manufacturing of drone parts, especially as the demands for part manufacturing processes increase with the rapid development of drone technology. MIM combines the flexibility of plastic injection molding with the high material utilization of powder metallurgy, enabling the production of complex-shaped, high-precision metal parts, making it particularly suitable for the lightweight, high-strength component needs of drones.

I. Specific Advantages of MIM in Drone Parts Manufacturing

(I) Integration of Complex Structural Forming Capabilities

Drone parts often have complex internal structures and intricate external features, such as:

Porous heat dissipation components
Internal flow channel structures
Thin-wall structural parts
Three-dimensional curved parts

MIM technology can mold these complex structures in one go, avoiding the precision loss and cost increase caused by multi-step assembly in traditional machining methods. For example, the motor housing of a drone typically needs to integrate heat dissipation fins, mounting holes, and internal channels, which MIM technology can perfectly achieve through integrated design.

(II) High Precision and Good Consistency

Drones have strict requirements for part dimensional accuracy. MIM technology can achieve:

Typical tolerances of ±0.3%-0.5%
Minimum hole diameter down to 0.1mm
Wall thickness down to 0.2mm
Surface roughness below Ra1.6μm

This high precision is particularly suitable for manufacturing key parts of drones like precision transmission components and sensor brackets. Additionally, MIM products exhibit high consistency between batches, aiding quality control in drone mass production.

(III) Excellent Material Properties

MIM technology can utilize various metal materials, including:

Stainless steel series: 17-4PH, 316L, etc., with good corrosion resistance
Low-alloy steel: used for high-strength structural components
Tungsten alloy: used for high-density balancing components
Titanium alloy: used for components requiring high strength and light weight

After processing through MIM technology, these materials can achieve densities of 95%-99% of theoretical values, with mechanical properties close to forged materials, fully meeting the strength requirements for drone parts.

(IV) Significant Cost Advantages

Compared to traditional CNC machining, MIM offers clear cost advantages in drone parts manufacturing:

High material utilization, minimal waste
Suitable for mass production, low unit costs
Reduces subsequent machining operations
Long mold life, typically exceeding 500,000 cycles

Especially for small, complex-shaped parts, the cost advantages of MIM are more prominent. For instance, in the case of gears commonly used in drones, MIM technology can reduce costs by 30%-50% compared to traditional machining methods.

(V) Support for Lightweight Design

Drones are highly weight-sensitive, and MIM technology supports lightweight design through:

Manufacturing thin-wall structures (minimum 0.2mm)
Achieving complex shapes after topology optimization
Using high-strength-to-weight ratio materials
Reducing the use of fasteners through integrated forming

For example, drone servo gear assemblies manufactured using MIM technology can reduce weight by 15%-20% compared to traditional machining while maintaining the same or even higher strength.

(VI) Rapid Response and Design Flexibility

The manufacturing cycle of MIM is relatively short, and design modifications are flexible, making it particularly suitable for the rapid iteration needs of drone products. During product development, functional prototypes can be quickly produced using MIM for verification. In the mass production phase, molds can be swiftly adjusted to accommodate design changes.

II. Applications of MIM in Typical Drone Parts

(I) Power System Parts

Motor housings and end caps
Gear drive components
Bearing seats
Heat dissipation components

(II) Structural Connectors

Hinge mechanisms
Quick-release connectors
Mounting brackets
Locking mechanisms

(III) Flight Control System Parts

Sensor housings
Servo gear assemblies
Linkage mechanisms
Precision bushings

(IV) Other Functional Parts

Antenna housings
Camera brackets
Battery connection components
Landing gear parts

III. The Advancement of MIM Technology and its Impact on the Drone Industry

As MIM technology continues to advance, including developments such as the application of new materials, improvement in the manufacturing capability of large parts, enhancement of surface treatment techniques, and the introduction of smart manufacturing technologies, these developments will further expand the applications of MIM in the drone field, driving drones towards lighter, stronger, and more reliable directions. Especially in the micro and industrial drone sectors, MIM technology will play an increasingly crucial role.

Decoding the Core Reasons Why Titanium Alloys Have Emerged as the New Favorite Material in the Computer Field

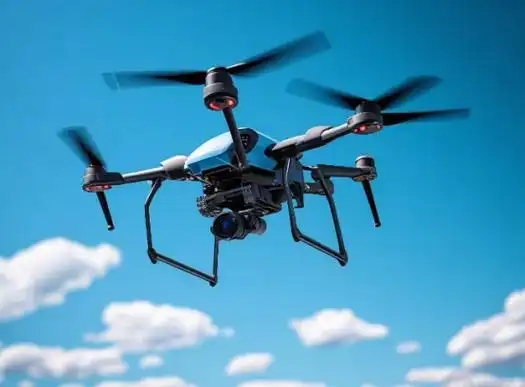

Embracing a Bright Future for Drone Parts with Metal Injection Molding (MIM) Technolog

Revolutionizing Robotics: Cutting-Edge Investments Fueling the Development of Humanoid Robots

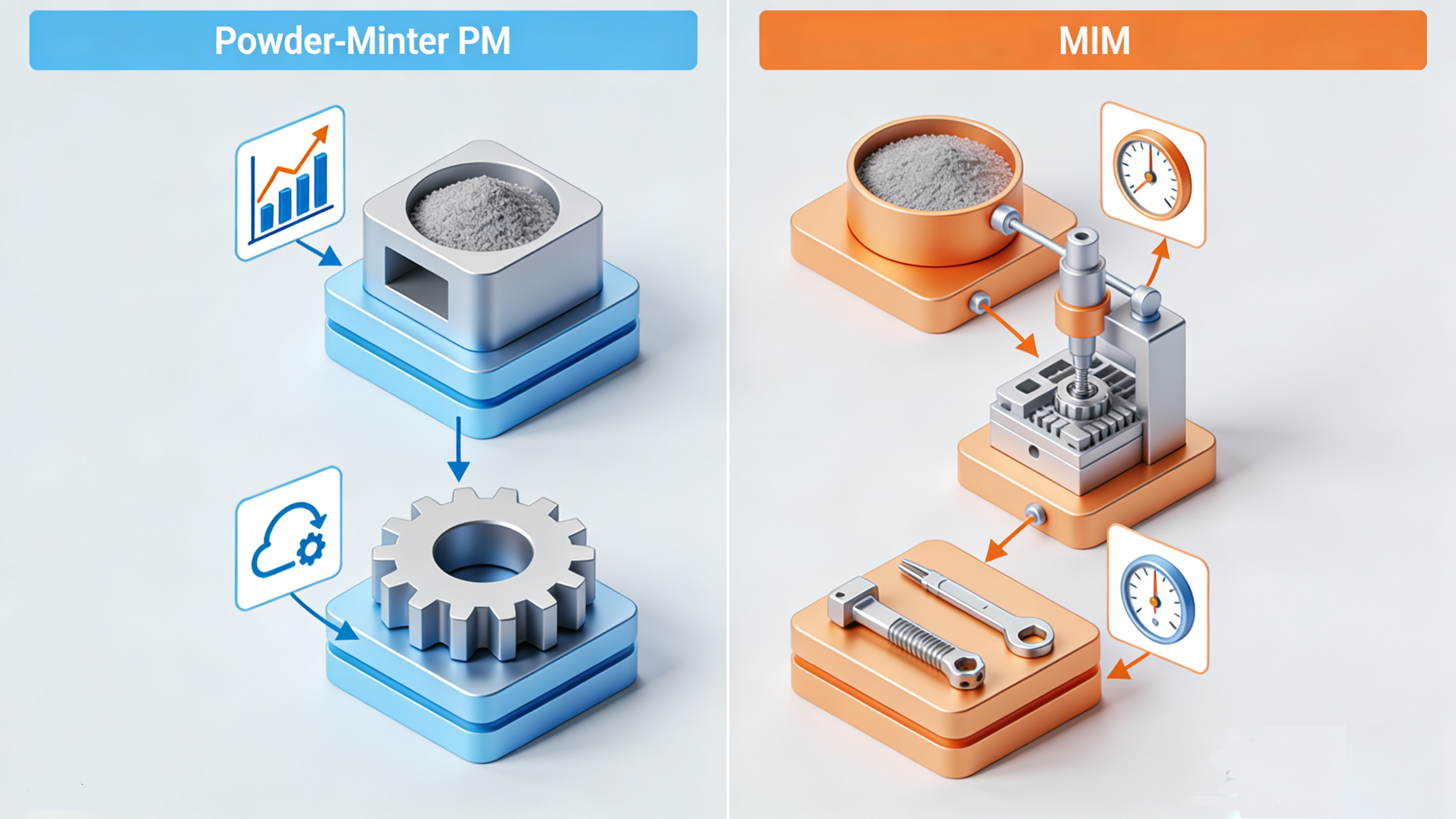

PM VS MIM

The Invisible Cornerstone of Modern Industry & How to Choose the Right Production Method

Mainstream Methods for Metal Powder Preparation in Powder Metallurgy — Powder Metallurgy and Injection Molding Industry Chain

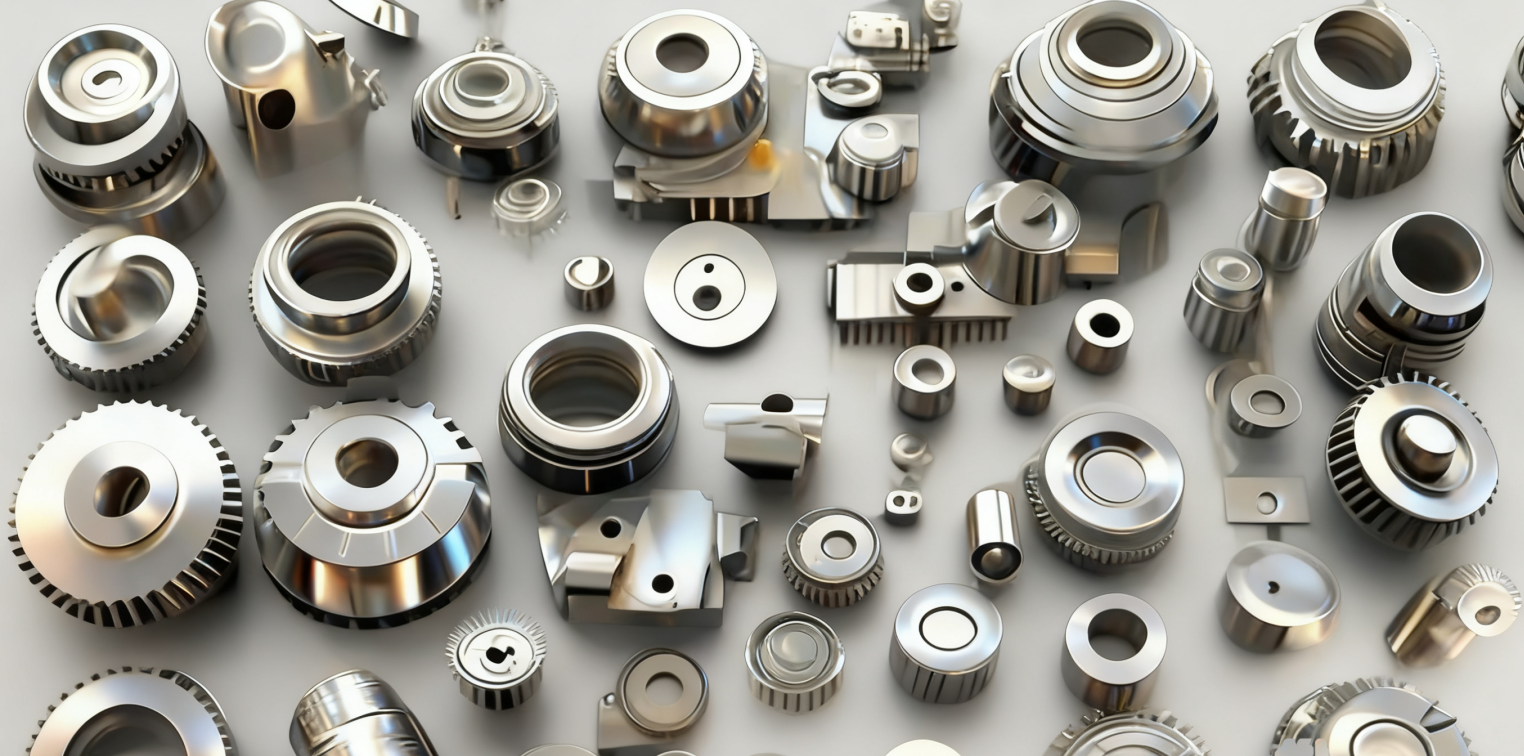

The Next Generation of Titanium Alloy MIM Technology
